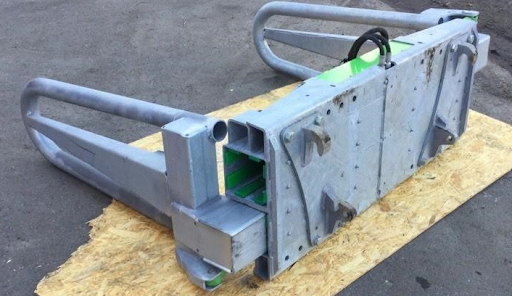

APM Universal Bale Clamp / Grabber

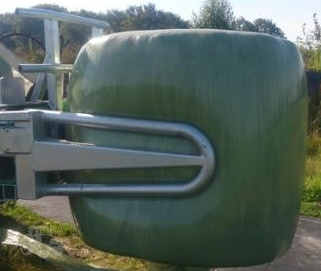

See our Bale Clamp in action.
Our Universal Bale Clamp works effortlessly when it comes to hay moving for storage or feeding purposes. Capable of moving round or square bales without spearing or damaging the bales while handling them.
Specifications
-
Standard Features:
- Completely galvanized, robust & modular
- Robust clamping arms with 2 strong cylinders for perfect grip
- Suitable for square and round bales with large clamping range: 27.5” – 96.5” (70cm – 245cm)
- MAX lifting weight: 3307 lbs. (1500kg)
- Skid Steer or Loader Attachment
- Weight: 661 lbs. (300kg)
- Max. oil pressure 180bar (pressure relief valve needed above 180 bar)
- Min. width clamp: 58” (147cm)
- Capacity: 3307 lbs. (1500kg)
Disclaimer: APM reserves the right to make
design changes and improvements with no obligation to retro-fit prior machines.
Pictures may show special order options or older versions that is not standard or up to date.
Measurements and capacity are estimated and are subject to change. Check with dealer or manufacture for
details.
