APM 3PT. SWEEPER W/ COLLECTOR
See our Sweeper in action.
Our very versatile and user-friendly sweeper is perfect to clean any terrain. It is completely galvanized, robust & modular and connects to any Cat. 2 three-point hitch with quick-change system (front and/or rear hitches). They are equipped with an internal hydraulic motor, adjustable brush depth, pneumatic wheels and hydraulic emptying collector (2 DA required). Our sweepers are mechanically adjustable to the left and right, up to 20°.
Specifications
-
Standard Features:
- Very versatile and user-friendly to perfectly clean any terrain
- Completely galvanized, robust & modular
- Linkage Cat. 2 three point with quick-change system for front and rear linkage and option for universal linkage
- Hydraulic engine is fitted internally

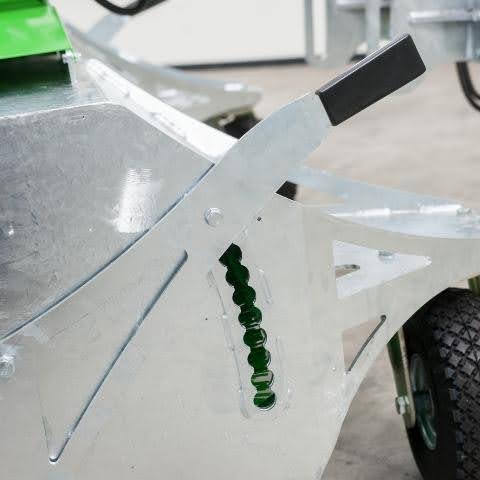

- Central depth adjustment of the brush (10 levels)

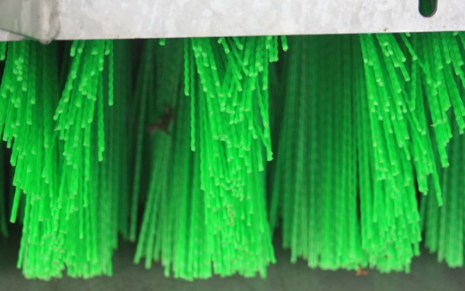

- Wave brush Ø23.6” (600mm)

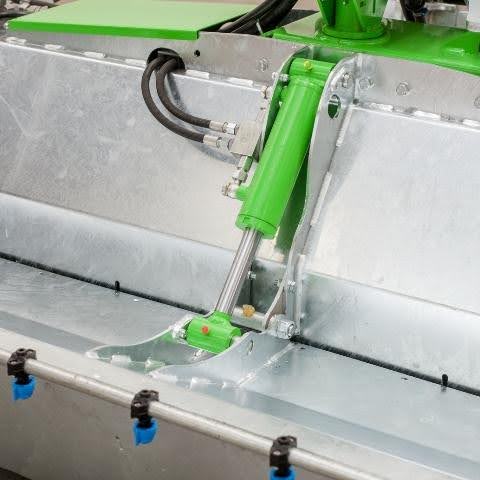

- Standard hydraulic emptying (2 DA required), collector 65 Gallons (247L) - Standard support wheel (without collector)
- Mechanic adjustable left and right 20°
- Pneumatic wheels Ø11.8” (300mm) (Qty: 3 without collector, Qty: 4 with collector)
- Working width 94.5” (240cm)
- Weight without collector 772 lbs. (350kg))
- Weight with collector 1103 lbs. (500kg)
- Width Overall:
- Hydraulic adjustable
- Sequence valve or electrically operated control valve
- Solid rubber Casters
- Hydraulic side brush
- Water spraying equipment with water tank
- Attachment forklift/skid steer
Disclaimer: APM reserves the right to make
design changes and improvements with no obligation to retro-fit prior machines.
Pictures may show special order options or older versions that is not standard or up to date.
Measurements and capacity are estimated and are subject to change. Check with dealer or manufacture for
details.
