APM Dump Trailer
See our Dump Trailer in action.

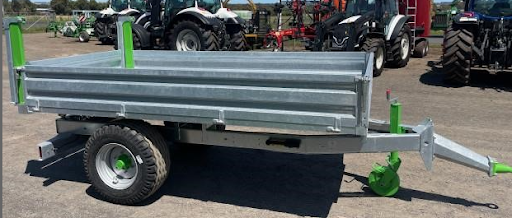

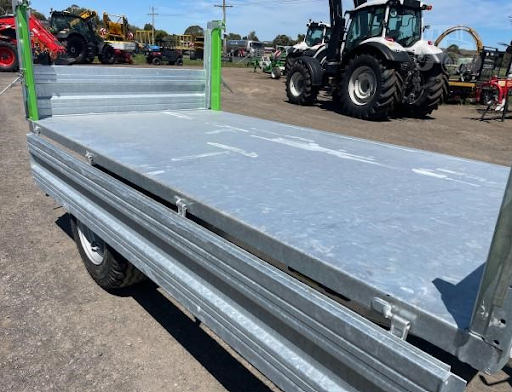

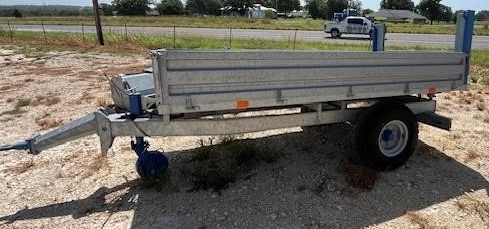

Our handy agricultural dump trailer is fully galvanized and equipped with drop down sides & removeable front and rear gates to use as a bed (auto open rear gate when dumping).
Specifications
-
Standard Features:
- Galvanized frame and load platform
- Hydraulic Rear Dump
- Fold Down Side Doors
- Self closing backdoor

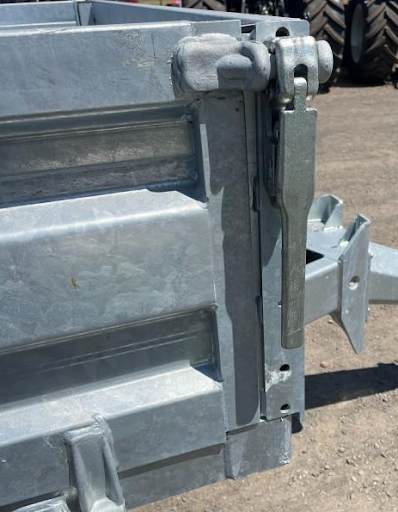

- Automatic lock system backdoor
- Lighting
- Tires 11.5/80×15.3
- Lower and upper drawbar
- Tow Eye Style hitch
- Thickness bottom: .157” (4 mm) / Thickness sideboards: 0.078” (2 mm)
- Max. total weight: 12566 lbs. (5.700kg)
- Loading capacity: 9920 lbs. (4.500kg)
- Dimensions loading area: 134” X 71” (340 x 180)
- Wall Height: 16” (40cm)
- Weight tipping trailer: 2645 lbs. (1.200kg)
- Power demand 45-75hp
- Height loading platform: 38” (96cm)
- Tipping angle 50˚
- Width Overall:
- Tires 15.0/55×17, 19.0/45×17 or 500/50×17
- 2-doors tailgate
- Hydraulic brakes / Airbrakes
- LED lighting
- Tool box
- Hooks for ropes
Disclaimer: APM reserves the right to make
design changes and improvements with no obligation to retro-fit prior machines.
Pictures may show special order options or older versions that is not standard or up to date.
Measurements and capacity are estimated and are subject to change. Check with dealer or manufacture for
details.
